Xpg

Basic Info.

Model NO.	XPG-900
Structure	Floor-Standing Type
Type of General Rubber Machinery	Material Processing Machine
Type	General Rubber Machinery
Linear Speed of Taking-in Conveyor (M/Mi	4-40
Hanging Height of The Sheet Hanging Bar	1400 M
Type of Tire Machinery	Rubber Regeneration Machinery
Max. Rubber Sheet Width	900 mm
Rubber Sheet Thickness (mm)	6-12
Power	28.8 Kw
Model	Xpg-900
Transport Package	Safety Wood or Plywood Crates Packaging
Specification	ISO9001: 2015; SGS
Trademark	SFC
Origin	China
HS Code	8477800000
Production Capacity	200sets/Month

Product Description

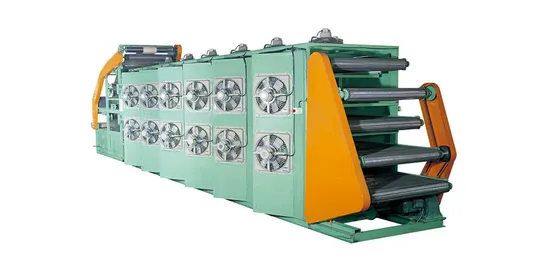

Rubber Batch-off Cooling Line, Batch Offf Cooling Line
Characteristic:
1. The rubber sheet cooling machine take off adopts steel conveying rollers, equipped with printer and slitter. The take-off and lifting device are driven by a common AC inverter motor. The conveying speed ID adjustable.
2. There are two types of hanging bar driving devices. For XPG(III)-900, when the piston bars of two side oil cylinders extend, they push the hanging bar. The one way bearing keeps the hanging bar standing when the oil cylinder cylinder piston bar retracts, therefore the hanging bar carry out intermittent movement. Other one is driven by one AC inverter motor. The speed of hanging bar is synchronous with the take-off and lifting device.
3. The sheet is uniformly coated with the lubricator by dipping without polluting the environment. Its cooling effect is better than the spraying.
4. The hanging up area is fully closed, which adopts the blower to blow the sheet at a slant. So it improves the air flowing direction and cooling effect.
5. The robot in the take-off is advanced in China. The take-off can be controlled automatically.
6. The electric control system adopts a reliable and automatic PC.
NOTES:
1. This batch-off cooler can cooling the rubber sheets from high temperature to room temperature, and applicable to any kinds of rubber materials.
2. The rubber batch-off cooler can be designed as a floorid construction or an over-head construction. The sheet can be output on the first floor or on the second floor or both the first and the second floor.
3. The rubber batch-off cooler is a conbined construction. Customer can add or reduce the middle support as required.
4. Customer can select the transverse strip cutter and the strip slitter according to the processing requirements.

Model	XPG-600		XPW-600	XPG-800	XPG-900
Structure	Floor-standing type		Chain-Belt type	Overhea type	Overhea type
Max. Rubber Sheet Width (mm)	600		600	800	900
Rubber Sheet thickness (mm)	4-10		2-12	4-10	6-12
Temperature over room temperature after rubber sheet cooling(centigrade)	10		10	15	5
Linear Speed of taking-in conveyor (m/min)	3-24		3-24	3-35	4-40
Linear speed of sheet-hanging chain (m/min)	0.82		Chain-belt layer: 5	0.117-1.17	4-40
Hanging height of the sheet hanging bar (m)	1000-1500		Net	1000-1500	1400
No. of cooling fans (set)	12			20	18-26
Total power (kw)	13.7			28.8	18-34
Overall Dimension(mm)	L	1425		16800	26630
	W	4500		4700	3500
	H	3405		3520	5630
