Factory Direct Sale Waste Tire Recycling Machine

Basic Info.

Model NO.	500kg/Hour
Type of Tire Machinery	Cycle Tire Machine
Transport Package	Container
Specification	CE1282, ISO9001: 2008, SGS
Trademark	SFC
Origin	Qingdao, China
HS Code	84778000
Production Capacity	20 Set Per Year

Product Description

Factory Direct Sale Waste Tire Recycle Machine
The main equipments of whole line:
1. Single Hook Debeader LSJ-1200
Structural features
The blade of cutter is made of alloy welding and the surface is hard wear-resisting.
On safety factor, this machine have protective frame, which can effectively guarantee safety in the process of pulling out wire loop.
Motor and reducer, and as a whole, the structure is compact.
The machine occupies the whole floor, convenient installation.
Use:
Pulling out the wire loops from the mouth of waste tires.

2. Tire Cutter QDJ-1200
The basic principle is: motor drives hydraulic system and the cylinder, place the tire to lock arm, fasten two blades rotating between tire and shear cylinders work to move, two blades rotating blades forming shear, achieve the effect of shear.
Feature:
This equipment, good shear effect, shearing speed, low energy consumption, small volume, convenient, because use the hydraulic system, easy operation and safe.
Mechanical description: the tires more than 800 need to cut, and cut into four pieces in general .the size of piece is 200-500mm.

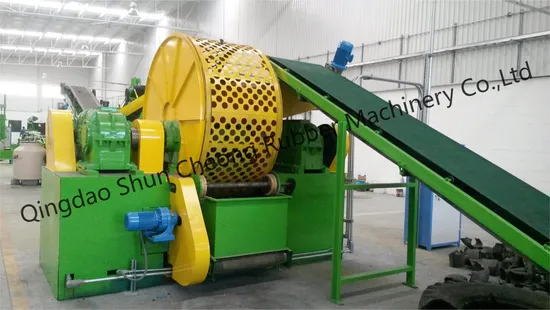

3&4. Whole tire shredder ZPS-900
Use:
This machine can directly crush tires smaller than 800mm tires. At the general temperature, can be put directly crushed into 50 * 50 mm block, so the next rotating can grind into 10-30 meshes or wire and fiber separation equipment.
Feature:
This machine is a compact structure, advanced technology, low energy consumption, high efficiency, smashing off the test room for the structure, maintenance is particularly convenient; tools with carbide surfacing technology, high hardness, high wear resistance, and repeated repair using, so has a longer service life; rotary screen for the lattice structure of steel mesh, blanking large area, enabling the screening of qualified rubber. After the partition of large tires can achieve the effect of the same!
Mechanical description: the tires of 800mm diameter and rubber ring can directly be broken into 50*50 mm of rubber block.

5. Double Rolls Rubber Crusher XKP-560
Use:
Mainly used for crack large rubber blocks into 40-50mm small rubber blocks.
Technical parameters:
Structure: The rollers adopt alloy cold hard cast irons with wear-resisting, durable characters. The mill flour is with teeth, high groove.
In order to extend the service life of the cracker, we suggest build foundations for rubber cracker.
The configurations of our XKP-560 rubber cracker are nylon bush grease lubrication and hard gear surface reducer with lower noise and longer service life.
Our crackers are designed humanized with nice operating platforms, all the wires will be connected well from controlling system to motor. When using the machine, the customers just need to connect directly to the power.

Configuration:

No.		Name	Model	Qty. (Qty)
1	Single hook debeader		LSJ-1200	1
2	Whole tyre cutter		QDJ-1200	1
3&4	Whole tyre shredder (with conveyor)		ZPS-900	1
5		Double Rolls Rubber Crusher	XKP560	1
6		Big conveyor equipment	BCL-8	1
7		Small conveyor equipment	BCL-3	1
8		Big Magnet separator	BMS22	1
9		Small Magnet separator	SMS-1	1
10		Big Shaking screen	BSS-8	1
11		Small Shaking screen	SSS-3	1
12		Fiber separator	FS110	1
13		Fine Rubber Powder Pulverizing Machine	XJFS-420	4
		Square vibrating sieve	600	1
		Rubber powder collector	JFS500	1
		Screw conveyer	Φ200mm	1
		Screw conveyer	Φ132mm	1
		Storage pin	1.5cbm	1
		Hopper		1
		Belt conveyer		1
14		Steel Baller machine	30T	1
15		Rubber powder packing machine		1

FAQ

1. What does your factory do regarding quality control?
We pay much more importance to quality control from the very beginning to the end of production. Every machine will be fully assembled and carefully tested before shipment.

2. What's the machine quality guarantee?
Quality guarantee time is one year.We choose world famous brand components to keep our machine in perfect working condition.

3. Are you able to give installation and commissioning overseas?How long time will it take?
Yes, we can supply overseas service and technical support but customer needs to pay for the cost of the installation. Small machine usually takes within 2~3 days. Big production line usually takes about 30 days.

4. How can I trust you to deliver the right machine as I ordered?
We will absolutely deliver a good quality machine as we discussed and confirmed in the order. The core of our company culture is innovation,quality,integrity and efficiency. Also we have had many good cooperation with world famous rubber production manufacturers.
If you come to our factory, we can show the user around us.

5. How can we go to your side?
We are located in Qingdao City, Shandong province, China. The name of airport is Qingdao liuting airport. We will pick up you at the airport.

Our Services ♦ Our engineers can design target machines for customers and send them the drawing to confirm. We are always on the side of saving your cost.♦ In the process of production, we will take photos and send to customers for their track the progress.♦ Documents such as packing list, commercial invoice, and bill of lading etc. will be sent after the delivery.♦ We could supply free English foundation DWG, installation drawing, user guide, maintenance manual and part drawing.♦ We supply overseas engineer service and help to train your workers to operate the machine.



Welcome your inquiry!
